 Binder Professional

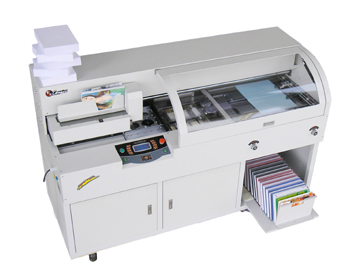

IBM1 Perfect Binding Machine

Perfect Binding Machine(Glue Binding Machine)

Technical Data:



Book binding size


Book binding thickness


Cover size


Cover type


Binding speed

theory speed: 300 books/hour

Time of glue melting

about 35 minutes

Milling cutter

solar milling cutter + small milling cutter

Pages for milling

3 pages

Clamping cover


Clamping book


Glue roller

3 back glue rollers+2 side glue rollers

Side glue


Glue control device




Clamping table adjustment


Cover position compensation


Cover press


Cover feeder


Book collecting


Safe shield v
Cover storage box ×
Metric system/English system switch v
Clamping cover with stable pressure v
Speed change v
Slip device straight track
Power 60Hz;AC220V±10%50or 60Hz 2600W
Machine dimension 1950×785×(+310extending)×1245

Net weigh


Gross Weight


Shipping Dimension(mm)


M Series Book Binding Machines

Automatic head and rear of glue control

Wiping off unnecessary glue in head and rear of book automatically, meeting special requirement of free of book cutting, protecting table by making no glue exist on table.

Automatic side glue control

Sizing side glue automatically according to book thickness, no need of any adjustment or parameter setting.

Clamping book automatically by inducing book

Clamping book automatically when machine induces book is put in, which raises binding speed greatly.

Smart temperature control

Automatic running after glue is melt, stopping running automatically during idling period, keeping temperature automatically, matching book speed automatically, these means 60% less smoke and 30% less energy and will improve air quality.

Inducing milling cutter automatically

Controlling milling cutter switch automatically and in time, lowering machine’s working noise effectively, upgrading working safety, saving energy more than 63%.

Clamping cover and outputting book automatically

Binding cover and book automatically, outputting book automatically, smart design raises binding efficiency greatly and lower manpower cost.

Extendable book collecting device

Indented during idle period, saving space, collecting some books automatically.

Conversing frequency speed control

Adopting digital conversing frequency speed control technology, avoiding shock, positioning precisely, raising 30% working efficiency, choosing related speed based on different binding technology and requirement.

Smoke exhausting device

Improving working environment’s air, protecting operator’s healthy

High volume glue box with three glue rollers

Three rollers design makes sizing glue more even and binding book more perfect. High volume glue box contains 4 times glue than ordinary binding machine, one time  glue filling can satisfy more  continuous binding  operations.

Dependent dust exhausting device(high power dust exhausting device is optional)

Reasonable dust exhausting design makes machine cleaner and glue more clearly. Optional high power dust exhausting device can satisfy industrial users’ need.

Big LCD display screen, complex  and directing menu

Adopting super big LCD display screen, complex menu for operation, dependent design for main buttons, directing and convenient.

Double start buttons

Double start button operation makes safe operation.

Super big transparent safe shield

Safe, easy to observation, satisfying CE requirement.

Dozens of hints

Dozens of hints, avoiding false operation, practicing more easier.

Metric system/English system switch

Metric system/English system switch, satisfy different users’ need, showing  staff’s concern on users’ needs.

Dozens of self checking functions

Self checking  and warning functions makes operator more familiar with machine.

Dozens of parameter setting

Dozens of parameter setting for speed, pressure, time of waiting for book and cover, these can be set according to habit.

Clamping cover with stable pressure technology

Keeping clamping voltage output stablely according to setting data, making perfect clamping cover effect.
